Implementing Raft Consensus Algorithm

type Log struct {
	Command string
	Term    int
	Content string
}
// Updated on stable storage before responding to RPCs. Should be durable
type PersistentState struct {
	// latest term server has seen. Starts at 0 and increases monotonically
	currentTerm int
	// CandidateId that received vote from this node in current term (null if none)
	votedFor    int
	// Log Entries which contains command for state machine, along with Term when it was received.
	log         map[int]Log
}

// Volatile state on all servers
type VolatileState struct {
    // Index of the highest log entry that is committed. Starts at 0 and increases monotonically
	commitIndex int
	// Index of the highest log entry that is applied to state machine. Starts at 0 and increases monotonically
	lastApplied int
}

// Volatile state on Leader, reset after each election
type VolatileLeaderState struct {
	// for each server, index of the next log entry to send to that server (initialized to leader last log index + 1)
	nextIndex  map[int]int
	// for each server, index of highest log entry known to be replicated on server (initialized to 0, increases monotonically)
	matchIndex map[int]int
}

// Invoked by leader to replicate log entries. Also used for heartbeats.
type AppendEntriesRequest struct {
	// Leaders term
	Term         int
	// Leader Id, so follower can redirect clients to Leader
	LeaderId     int
	// Index of log entry immediately preceding new ones. Raft uses it to avoid Gaps in the logs.
	PrevLogIndex int
	// Term of the prevLogIndex entry
	PrevLogTerm  int
	// Log entries to store (empty for heartbeat; may send more than one for efficiency)
	Entries      []Log
	// Leaders commit
	LeaderCommit int
}

// Response of AppendEntriesRequest
type AppendEntriesResponse struct {
	// currentTerm of responding node. It is for the leader to update itself. If the responding node has higher term, the leader will
    // become a follower.
	Term    int
	// True if the follower contained entry matching prevLogIndex and prevLogTerm
	Success bool
}

// Invoked by candidates to gather votes
type RequestVoteRequest struct {
	// Candidates term
	Term         int
	// Candidate requesting vote
	CandidateId  int
	// Index of candidates' last log entry. During the election other followers will accept the request only if
    // the candidate log is at least as up to date as the receivers log
	LastLogIndex int
	// Term of candidates last log entry
	LastLogTerm  int
}

// Response of RequestVoteRequest
type RequestVoteResponse struct {
	// currentTerm of responding node, for the candidate to update itself.
	Term        int
	// True if the candidate received the vote
	VoteGranted bool
}

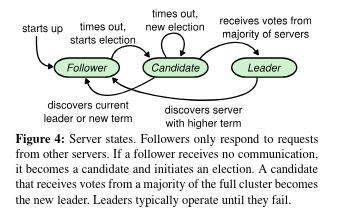

// A follower node constantly checks if it received a message from leader recently.
// If not, it will become a candidate and will start election.
func (s *Server) CandidateChecker() {
	for {
		s.mutex.Lock()
		if s.role == "follower" {
			if (time.Since(s.lastRequestTime) > 1*time.Second) && (time.Since(s.lastVoteTime) > 1*time.Second) {
				s.role = "candidate"
				s.lastVoteTime = time.Now()
				s.mutex.Unlock()
				s.startElection()
			} else {
				s.mutex.Unlock()
			}
		} else {
			s.mutex.Unlock()
		}
		// Jitter time
		time.Sleep(time.Duration(rand.IntN(100)) * time.Millisecond)
		time.Sleep(100 * time.Millisecond)
	}
}

// Starts election by sending RequestVote RPC to all the neighbor nodes.
func (s *Server) startElection() {
	s.mutex.Lock()
	lastLogIndex := s.getLastLogIndexLocked()
	lastLogTerm := s.PeristentState.log[lastLogIndex].Term

	// Increment Term and start election
	s.PeristentState.currentTerm++
	requestVote := RequestVoteRequest{
		Term:         s.PeristentState.currentTerm,
		CandidateId:  s.nodeId,
		LastLogIndex: lastLogIndex,
		LastLogTerm:  lastLogTerm,
	}

	s.logger.Info("Election start", "requestVote", requestVote, "nodeId", s.nodeId)
	j, err := json.Marshal(requestVote)
	if err != nil {
		s.logger.Error("Starting election failed with Json Marshal", "requestVote", requestVote, "err", err, "nodeId", s.nodeId)
	}

	// We vote for ourselves first
	s.PeristentState.votedFor = s.nodeId
	neighbourNodes := make([]int, len(s.neighbourNodes))
	copy(neighbourNodes, s.neighbourNodes)
	s.mutex.Unlock()

	outputs := make(map[int]RequestVoteResponse)
	// We send requestVote request to all neighbors
	for _, n := range neighbourNodes {
		resp, err := http.Post("http://localhost:"+strconv.Itoa(8000+n)+"/requestVote", "application/json", bytes.NewReader(j))
		if err != nil {
			s.logger.Error(err.Error(), "requestVote", requestVote, "nodeId", s.nodeId)
			continue
		}

		var requestVoteResponse RequestVoteResponse
		err = json.NewDecoder(resp.Body).Decode(&requestVoteResponse)
		if err != nil {
			s.logger.Error(err.Error())
			continue
		}
		outputs[n] = requestVoteResponse
	}

	s.mutex.Lock()
	successCount := 0
	rejectRequest := false
	for _, v := range outputs {
		// We got a vote from a follower
		if v.VoteGranted {
			successCount++
		}
        // Raft uses Term as a Logical Clock. A node sent us a Term greater than our Term.
        // This means that node is more updated. So we should become a follower and stop election.
		if v.Term > s.PeristentState.currentTerm {
			s.role = "follower"
			s.PeristentState.currentTerm = v.Term
			rejectRequest = true
			break
		}
	}

	if rejectRequest {
		s.mutex.Unlock()
		s.logger.Info("There is another candidate with higher Term", "requestVote", requestVote, "nodeId", s.nodeId)
		return
	}

	// We need a majority (n/2 + 1). We already voted for ourselves
	if successCount >= len(s.neighbourNodes)/2 {
		s.logger.Info("New leader elected", "requestVote", requestVote, "nodeId", s.nodeId, "pid", os.Getpid())
		s.role = "leader"
		s.mutex.Unlock()
		// Once we are elected leader, we should send an empty heartbeat for others to know, we have a new leader.
		s.sendHeartBeatEmpty()
		s.mutex.Lock()
		// Initialize the nextIndex and matchIndex for each follower, so that we can send them logs
		s.VolatileLeaderState.nextIndex = make(map[int]int)
		s.VolatileLeaderState.matchIndex = make(map[int]int)
		for _, n := range s.neighbourNodes {
			s.VolatileLeaderState.nextIndex[n] = s.getLastLogIndexLocked() + 1
			s.VolatileLeaderState.matchIndex[n] = 0
		}
		s.mutex.Unlock()
		return
	}
	// We didn't get majority votes, so we failed. So we go back to the follower role.
	s.logger.Info("Election failed", "requestVote", requestVote, "nodeId", s.nodeId)
	s.role = "follower"
	s.mutex.Unlock()
}

// Handler for RequestVote in all nodes
func (s *Server) RequestVote(request RequestVoteRequest) RequestVoteResponse {
	s.mutex.Lock()
	defer s.mutex.Unlock()

	// We always need to keep track of the time we got our last request.
    // This is useful to know when we should try to become a candidate
	s.lastRequestTime = time.Now()

	// Raft guarantees that a node will not vote for two different candidates in a single term using votedFor
    // This is also stored in a durable storage to have this guarantee
	// We will reset votedFor after election timeout time, so that we can vote for another candidate or ourselves
	if time.Since(s.lastVoteTime) > time.Second*1 {
		s.PeristentState.votedFor = -1
	}
	// If there is a more updated node, we convert to a follower
	if request.Term > s.PeristentState.currentTerm {
		s.PeristentState.currentTerm = request.Term
		s.role = "follower"
	}
	out := RequestVoteResponse{}
	// If we are more updated than the candidate, we let the node know it.
    // The node will see we are more updated than it and will step down to a follower role
	// This will give us a chance to become a leader
	if request.Term < s.PeristentState.currentTerm {
		out = RequestVoteResponse{Term: s.PeristentState.currentTerm, VoteGranted: false}
		s.logger.Info("RequestVote Overruled", "request", request, "out", out)
		return out
	}

	// We only vote if we haven't voted for anyone
	if s.PeristentState.votedFor == -1 {
		last := s.getLastLogIndexLocked()
		// The candidate should have the last log entry at least as up to date as us
		if request.LastLogIndex >= last && (request.LastLogTerm >= s.PeristentState.log[last].Term) {
			out = RequestVoteResponse{Term: s.PeristentState.currentTerm, VoteGranted: true}
		} else {
			out = RequestVoteResponse{Term: s.PeristentState.currentTerm, VoteGranted: false}
		}

		if out.VoteGranted {
			s.PeristentState.votedFor = request.CandidateId
			s.lastVoteTime = time.Now()
			s.logger.Info("RequestVote voted", "request", request, "out", out, "nodeId", s.nodeId)
		}
		return out
	} else {
		out = RequestVoteResponse{Term: s.PeristentState.currentTerm, VoteGranted: false}
		s.logger.Info("RequestVote already voted", "request", request, "out", out, "nodeId", s.nodeId)
		return out
	}
}

type KV struct {
    Key   string
    Value string
}
// This is executed in the leader node
func (s *Server) insertLog(req KV) error {
	s.mutex.Lock()
	// Only the leader should accept the writes / reads
	if s.role != "leader" {
		s.mutex.Unlock()
		return errors.New("not leader")
	}

	// Add to the local log, the values from request
	// We use our term along with the command and value
	lastIndex := s.getLastLogIndexLocked()
	s.PeristentState.log[lastIndex+1] = Log{Term: s.PeristentState.currentTerm, Command: req.Key, Content: req.Value}

	requests := make(map[int][]byte)

	// nextIndex has the index of the log entry which should be sent next to the node
    // matchIndex has the index of the highest log entry which is known to be replicated
	// Send append requests based on nextIndex and matchIndex
	for _, n := range s.neighbourNodes {
		prevLogIndex := s.VolatileLeaderState.nextIndex[n] - 1
		prevLogTerm := s.PeristentState.log[prevLogIndex].Term
		entries := make([]Log, 0)

		for i := prevLogIndex + 1; i <= s.getLastLogIndexLocked(); i++ {
			entries = append(entries, s.PeristentState.log[i])
		}

		appendEntriesRequest := AppendEntriesRequest{
			Term:         s.PeristentState.currentTerm,
			LeaderId:     s.nodeId,
			PrevLogIndex: prevLogIndex,
			PrevLogTerm:  prevLogTerm,
			Entries:      entries,
			LeaderCommit: s.VolatileState.commitIndex,
		}

		j, err := json.Marshal(appendEntriesRequest)
		if err != nil {
			// this shouldn't happen
			panic(err)
		}
		requests[n] = j
	}
	s.mutex.Unlock()

	// Send the corresponding messages to all followers and get the response
	successCount, rejectRequest := s.sendToFollowers(requests)

	if rejectRequest {
		return Errors.New("Please send to leader node")
	}

	s.mutex.Lock()
	// We got a majority of confirmations, so it is a success, lets append it to our log
	if successCount >= len(s.neighbourNodes)/2 {
		s.PeristentState.log[s.VolatileState.commitIndex+1] = Log{
			Command: req.Key,
			Term:    s.PeristentState.currentTerm,
			Content: req.Value,
		}
		// Since we got confirmations from a majority, let's mark the entry as committed.
        // In raft is an entry with id X is committed; all entries X-1,X-2..., etc. are also considered committed.
		s.VolatileState.commitIndex++
		// Apply the log to our state machine
        // In our case it is a simple KV store
		s.applySnapshotLocked()
		commitIndex := s.VolatileState.commitIndex
		s.mutex.Unlock()
		s.logger.Info("Applied commit index: ", "commitIndex", commitIndex)
		return
	}
	s.mutex.Unlock()

	return errors.New("majority not reached or timed out")
}

func (s *Server) sendToFollowers(j map[int][]byte) (int, bool) {
	outputs := make(map[int]AppendEntriesResponse)
	for _, n := range s.neighbourNodes {
		resp, err := http.Post("http://localhost:"+strconv.Itoa(8000+n)+"/appendEntries", "application/json", bytes.NewReader(j[n]))
		if err != nil {
			// There seems to be an error, move to the next node
			continue
		}

		var appendEntriesResponse AppendEntriesResponse
		err = json.NewDecoder(resp.Body).Decode(&appendEntriesResponse)
		if err != nil {
			// This shouldn't happen. Let's move to the next node
			continue
		}
		outputs[n] = appendEntriesResponse
	}

	s.mutex.Lock()
	defer s.mutex.Unlock()
	successCount := 0
	rejectRequest := false
	for nodeId, v := range outputs {
		if v.Success {
            // Ideally, index updates should be based on the contents of j.
			// But even if it is wrong, we have a mechanism to fix this builtin to the raft protocol
			lastLogIndex := s.getLastLogIndexLocked()
			s.VolatileLeaderState.nextIndex[nodeId] = lastLogIndex + 1
			s.VolatileLeaderState.matchIndex[nodeId] = lastLogIndex
			successCount++
		}
		if v.Term > s.PeristentState.currentTerm {
			// There is someone with a more updated Term
			s.role = "follower"
			s.PeristentState.currentTerm = v.Term
			rejectRequest = true
			break
		}
        // Handle cases where followers gave false because they are far behind
		// In this case, we send the previous log to follower. If it again fails,
        // we try an even earlier log and so on until the follower has caught up or
        // we reach the beginning of the log
		if !v.Success {
			// Logs are behind
			s.VolatileLeaderState.nextIndex[nodeId] -= 1
			s.VolatileLeaderState.matchIndex[nodeId] -= 1
		}
	}
	return successCount, rejectRequest
}

// Executed on follower nodes when the leader sends AppendEntries
func (s *Server) AppendEntries(request AppendEntriesRequest) AppendEntriesResponse {
	s.mutex.Lock()
	defer s.mutex.Unlock()

	// Reset voted for if successful
	s.PeristentState.votedFor = -1
	s.lastRequestTime = time.Now()

	// Rule for all servers
	if request.Term > s.PeristentState.currentTerm {
		s.PeristentState.currentTerm = request.Term
		s.role = "follower"
	}
	out := AppendEntriesResponse{}

    // If we have a more up to date term than the sender, we return success false
    // This makes the sender step down to a follower role, and we will have a chance at being the leader
	if request.Term < s.PeristentState.currentTerm {
		out = AppendEntriesResponse{Term: s.PeristentState.currentTerm, Success: false}
		return out
	}

	// Check if the previousLogIndex exists. This check is to prevent Gaps in logs.
    // If the previous log is missing, we will send a false, which will let the
    // leader know we are missing log entries. So leader will send earlier logs to us.
	v, ok := s.PeristentState.log[request.PrevLogIndex]
	if !ok {
		s.logger.Info("AppendEntries failed, previous log not found", "request", request, "nodeId", s.nodeId)
		return AppendEntriesResponse{Term: s.PeristentState.currentTerm, Success: false}
	}

	// The log exists, but the terms don't match
	// We will have to delete all non-matching entries starting at this entry
	// Leader always forces its entries on to the follower
	if v.Term != request.PrevLogTerm {
		s.logger.Info("AppendEntries failed", "request", request, "out", out, "nodeId", s.nodeId)
	}

	// delete the existing entry and all following Entries in the request
	keys := slices.Sorted(maps.Keys(s.PeristentState.log))
	for _, key := range keys {
		if key > request.PrevLogIndex {
			delete(s.PeristentState.log, key)
		}
	}
	// Append all new Entries
	for i, entry := range request.Entries {
		s.PeristentState.log[request.PrevLogIndex+i+1] = entry
	}

	// Update our commit Index
	if request.LeaderCommit > s.VolatileState.commitIndex {
		lastLogIndex := s.getLastLogIndexLocked()
		s.VolatileState.commitIndex = min(request.LeaderCommit, lastLogIndex)
	}

	// Everything seems fine
	out = AppendEntriesResponse{Term: s.PeristentState.currentTerm, Success: true}
	if len(request.Entries) > 0 {
		s.logger.Info("AppendEntries successful", "request", request, "out", out, "nodeId", s.nodeId)
	} else {
		s.logger.Info("Heartbeat received", "request", request, "out", out, "nodeId", s.nodeId)
	}
	return out
}

func (s *Server) LeaderHeartbeat() {
	for {
		s.mutex.Lock()
		role := s.role
		s.mutex.Unlock()
		if role == "leader" {
			s.sendPeriodicHeartBeat()
		}
		time.Sleep(time.Millisecond * 400)
	}
}

func (s *Server) sendPeriodicHeartBeat() {
	s.mutex.Lock()
	if s.role != "leader" {
		s.mutex.Unlock()
		return
	}

	requests := make(map[int][]byte)

	// Send append requests based on nextIndex and matchIndex
	for _, n := range s.neighbourNodes {
		prevLogIndex := s.VolatileLeaderState.nextIndex[n] - 1
		prevLogTerm := s.PeristentState.log[prevLogIndex].Term
		entries := make([]Log, 0)

		for i := prevLogIndex + 1; i <= s.getLastLogIndexLocked(); i++ {
			entries = append(entries, s.PeristentState.log[i])
		}

		appendEntriesRequest := AppendEntriesRequest{
			Term:         s.PeristentState.currentTerm,
			LeaderId:     s.nodeId,
			PrevLogIndex: prevLogIndex,
			PrevLogTerm:  prevLogTerm,
			Entries:      entries,
			LeaderCommit: s.VolatileState.commitIndex,
		}

		j, err := json.Marshal(appendEntriesRequest)
		if err != nil {
			// this shouldn't happen
			panic(err)
		}
		requests[n] = j
	}
	s.mutex.Unlock()

	_, _ = s.sendToFollowers(requests)
}

func (s *Server) SnapshotChecker() {
	for {
		// Apply changes to state machine
		s.ApplySnapshot()
		time.Sleep(10 * time.Millisecond)
	}
}

func (s *Server) ApplySnapshot() {
	s.mutex.Lock()
	defer s.mutex.Unlock()
	s.applySnapshotLocked()
}

func (s *Server) applySnapshotLocked() {
	// check if we can update the commit index
	keys := slices.Sorted(maps.Values(s.VolatileLeaderState.matchIndex))
	if len(keys) > 0 {
		commitOnAll := keys[len(keys)-1]

		// We need a no-op from leader to advance the commit index. We leave it up to clients to send it to us.
		if s.PeristentState.log[commitOnAll].Term == s.PeristentState.currentTerm {
			s.VolatileState.commitIndex = commitOnAll
		}
	}

	for s.VolatileState.commitIndex >= s.VolatileState.lastApplied {
	    // Below function, simply performs, s.state[command] = content, as we have a simple KV store on top of Raft
		s.state = s.stateMachine(s.state, s.PeristentState.log[s.VolatileState.lastApplied].Command, s.PeristentState.log[s.VolatileState.lastApplied].Content)
		s.logger.Info("State updated", "state", s.state)
		s.VolatileState.lastApplied++
	}
}
